BUILDING OF THE 1960s
Official Release of 21/12/2018 (SEISMOSTRUCT)BUILDING OF THE 1960s
The model describes a typical four storey building constructed in the 1960s in Italy and strengthened with reinforced concrete jackets. The download file contains two SeismoStruct models, the first model was made for the typical structure and the second for the strengthened structure.

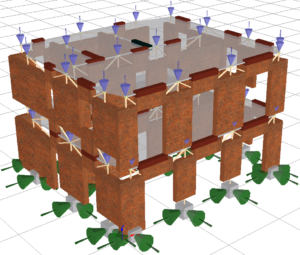

2-STOREY MASONRY BUILDING
Official release of 20/03/2020 (SEISMOSTRUCT)2-STOREY MASONRY BUILDING
This is a model of a 2-storey masonry building at which masonry walls and spandrels are used with element offsets to model the wall-spandrel joints, as well as elements to represent the so-called “bond beams” commonly used in masonry buildings in Italy. SeismoStruct project file for Dynamic analysis is provided. The model was created by Mosayk Srl..

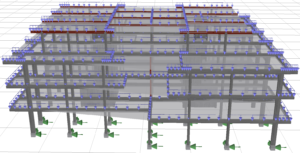

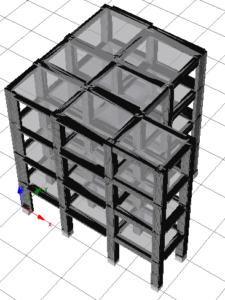

4-STOREY ITALIAN BUILDING
Official release of 21/12/2018 (SEISMOSTRUCT)

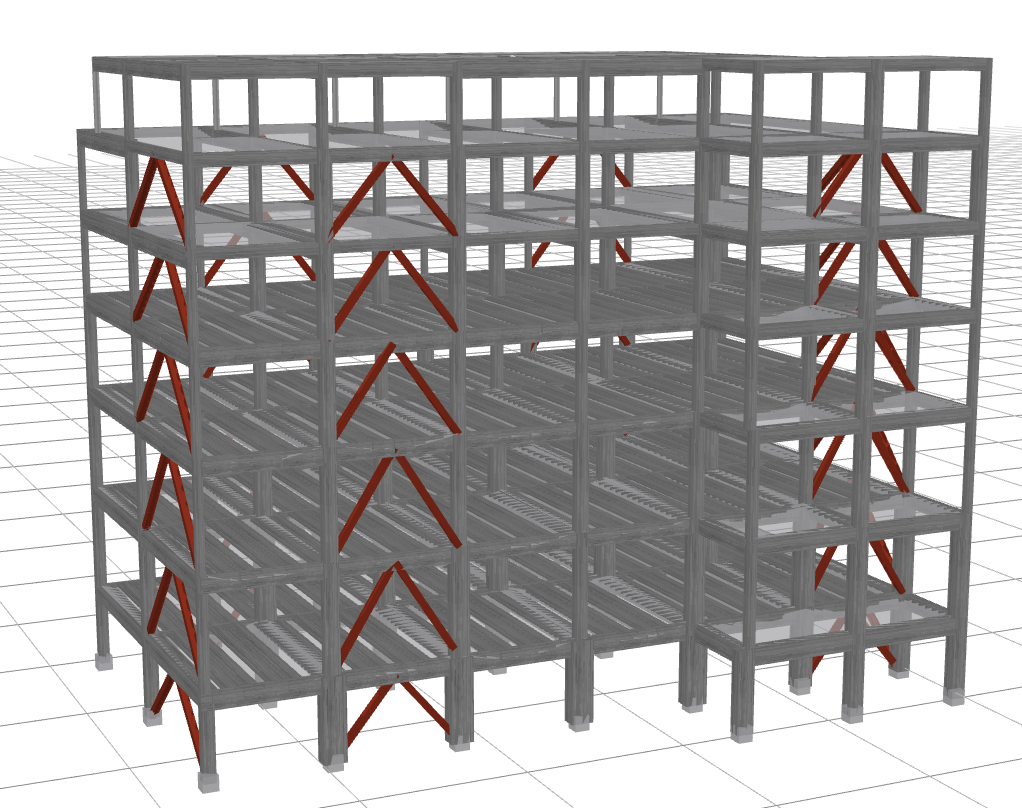

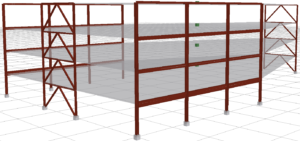

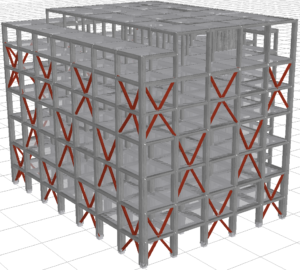

8-STOREY BUILDING STRENGTHENED WITH X-BRACES
Official release of 25/09/2018 (SEISMOSTRUCT)8-STOREY BUILDING STRENGTHENED WITH X-BRACES
This is an 8-storey Greek building that has been built in the 1960’s with small and lightly reinforced members and is strengthened with large X-shaped steel braces. The SeismoStruct Pushover and Eigenvalue analysis files are provided. The model was created by Giannelos and Kassimis.

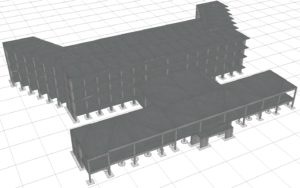

5-STOREY EXISTING BUILDING - HOTEL
Official release of 11/01/2019 (SEISMOBUILD)5-STOREY EXISTING BUILDING - HOTEL
This is a 5-storey existing Greek building that is used as a hotel. The hotel was built in the early 1970’s and, apart small and lightly reinforced members, it features significant deficiencies (significant lack of stirrups) at the ground floor level. Two SeismoBuild models are provided, the original and the strengthened (with shear walls and jackets) structure. The model was created by Alfakat SA, Athens.

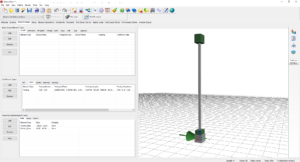

EXAMPLE WITH ssilink1 MACRO-ELEMENT FOR FOOTINGS
Official release of 12/03/2020 (SEISMOSTRUCT)EXAMPLE WITH ssilink1 MACRO-ELEMENT FOR FOOTINGS
This is a simple example for the modeling of a 5.00×2.50 footing subjected to dynamic loading with the ssilink1 macro-element for footings. Note that when using the SSI macro-elements users are advised to apply the initial loads in more than 1 steps, due to the inelastic response of the soil. The model was created by Dr. Antonio Araujo Correia.

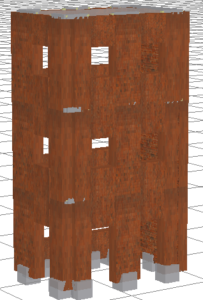

MASONRY MODEL
Official release of 10/03/2020 (SEISMOSTRUCT)

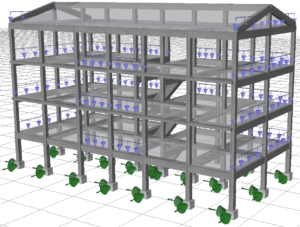

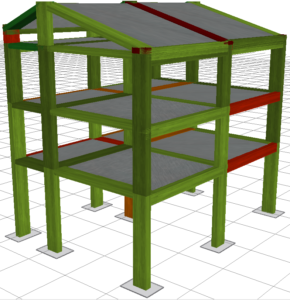

4-STOREY ITALIAN BUILDING WITH ROOF
Official release of 21/12/2018 (SEISMOSTRUCT)

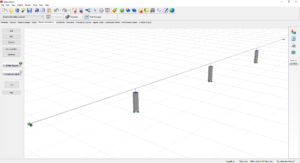

EXAMPLE WITH ssilink2 MACRO-ELEMENT
Official release of 23/04/2020 (SEISMOSTRUCT)EXAMPLE WITH ssilink1 MACRO-ELEMENT
This is a bridge model with “pile-column”/”monoshaft”/”extended pile shaft” supports according to the Caltrans seismic design for bridges with monoshaft supports of type II. It has 3 columns on the pile macro-elements and the loading is bi-directional. The model was created by Dr. Antonio Araujo Correia.

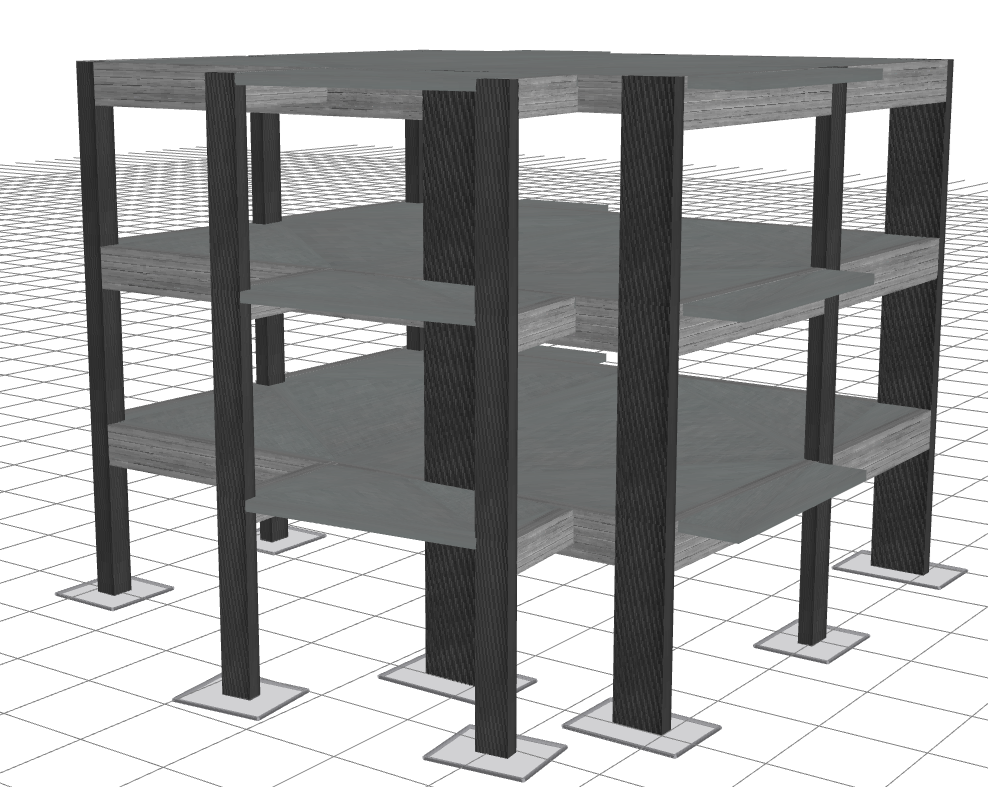

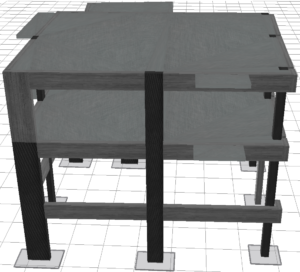

3-STOREY BUILDING STRENGTHENED WITH FRP WRAPS
Official release of 21/12/2018 (SEISMOBUILD)

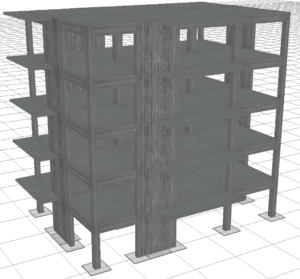

5-STOREY TYPICAL GREEK BUILDING

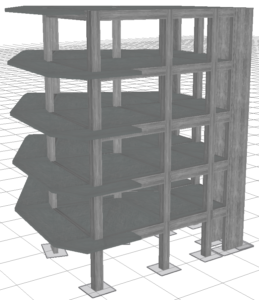

Official release of 11/01/2019 (SEISMOBUILD)5-STOREY TYPICAL GREEK BUILDING

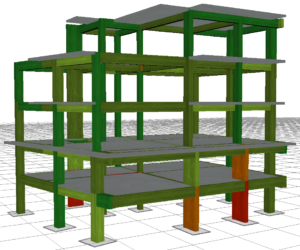

This is a 5-storey typical existing Greek building that has been used for checks of KANEPE, the Greek Interventions Code. Two SeismoBuild project files are provided, the original building and the building strengthened with shear walls. The model was created by Alfakat SA, Athens.
5-STOREY TYPICAL EXISTING GREEK BUILDING
Official release of 11/01/2019 (SEISMOBUILD)

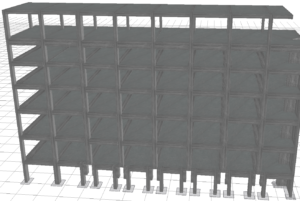

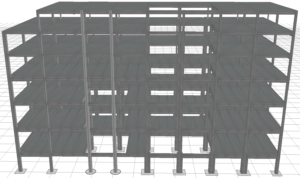

7-STOREY BUILDING BUILT IN THE 1960’S
Official release of 16/01/2019 (SEISMOBUILD)
5-STOREY BUILDING
Official release of 21/12/2018 (SEISMOBUILD)5-STOREY BUILDING
This is a 5-storey Greek building. The first and second floors were built in the 1990’s, and the structure is assessed` and strengthened with FRP wraps, in order to be able to sustain 3 additional storeys. The SeismoBuild project file is provided. The model was created by Christos Giannelos.

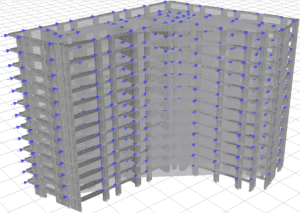

13-STOREY BUILDING IN BUCHAREST
Official release of 16/01/2019 (SEISMOSTRUCT)

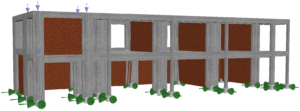

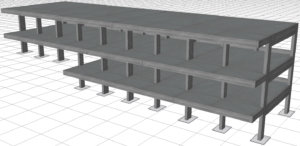

2-STOREY SCHOOL BUILDING IN GREECE
Official release of 16/01/2019 (SEISMOSTRUCT)

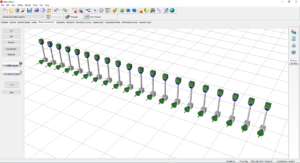

MODEL WITH ISOLATORS
Official release of 21/12/2018 (SEISMOSTRUCT)MODEL WITH ISOLATORS
This consists of 20 independent stick models of varying stiffness and strength properties. The models are made up of link elements which act as isolators. The user can see how the different models respond to the input excitation – an east-west component of the M7.3 Taiwan SMART1(45) event. Hysteretic curves exhibit the expected behavior. The model was created by Dr. Timothy E. Huff of the Tennessee Tech University.

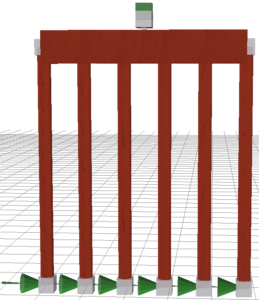

SINGLE BRIDGE BENT WITH AN ISOLATED MASS
Official release of 14/01/2019 (SEISMOSTRUCT)SINGLE BRIDGE BENT WITH AN ISOLATED MASS
This model represents a single bridge bent with an isolated mass. The user may clearly observe when the isolator breaks away during the running of the analysis. This model also demonstrates the potential for large residual displacements in isolation devices with very low post-yield stiffness. The model was created by Dr. Timothy E. Huff of the Tennessee Tech University.

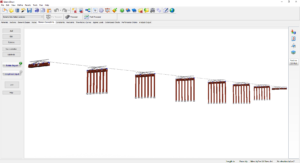

7-SPAN BRIDGE

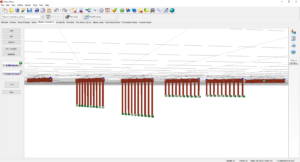

Official release of 14/01/2019 (SEISMOSTRUCT)7-SPAN BRIDGE
This model includes an entire 7-span bridge. The superstructure is modeled as a spine element. Isolators are modeled with links at the interface between each substructure and the superstructure. The model takes a very long time to run, But may be useful in demonstrating modeling techniques for a complete structure. The model does permit complete analysis and the various hysteretic curves of the isolators may be compared at each substructure. The model was created by Dr. Timothy E. Huff of the Tennessee Tech University.

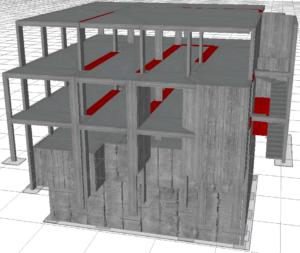

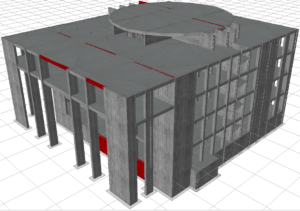

5-STOREY BUILDING IN AMMAN
Official release of 17/01/2019 (SEISMOBUILD)

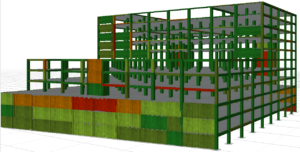

PODIUM BETWEEN THE JORDAN GATE TOWERS IN AMMAN
Official release of 17/01/2019 (SEISMOBUILD)

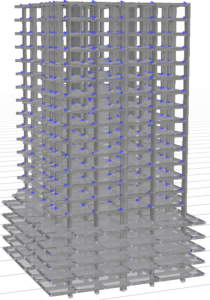

15-STOREY BUILDING WITH 5 ADDITIONAL BASEMENT FLOORS
Official release of 14/01/2019 (SEISMOSTRUCT)15-STOREY BUILDING WITH 5 ADDITIONAL BASEMENT FLOORS
This is the model of a 15-storey building with 5 additional basement floors. The flexibility of the soil in the perimeter of the basements is modelled through link elements. SeismoStruct project files for Pushover and Eigenvalue analysis are provided. The model was developed by Juan Garces.

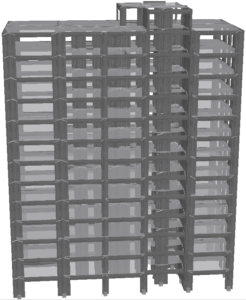

13-STOREY ROMANIAN BUILDING
Official release of 24/09/2019 (SEISMOSTRUCT)13-STOREY ROMANIAN BUILDING

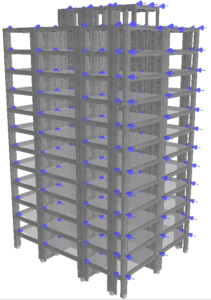

This is a 13-storey Romanian building with shear walls in both directions and is part of a residential project consisted in multiple superstructures on a common two levels infrastructure. The total overground height of the structure is 41.53 meters and has a length of 24.5m and a width of 19.4m. The SeismoStruct Pushover analyses file is provided. The model was created by DI&A, Bucharest.

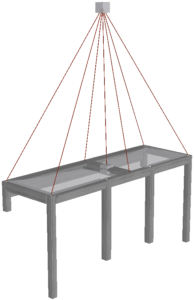

SLAB UPLIFT
Official release of 14/01/2019 (SEISMOSTRUCT)
MODELS OF EXISTING SCHOOL BUILDINGS
Official release of 22/05/2020 (SEISMOSTRUCT & SEISMOBUILD)MODELS OF EXISTING SCHOOL BUILDINGS
This is a set of models of three different buildings A, B & C that constitute a school in Southern Greece. SeismoBuild and SeismoStruct models for the assessment of the existing buildings and for the assessment of the different methods of strengthening of building A are included. The models were created by Alfakat SA.
14-STOREY ROMANIAN BUILDING
Official release of 25/09/2019 (SEISMOSTRUCT)14-STOREY ROMANIAN BUILDING
This is a 14-storey Romanian building with shear walls with local coupling beams and is part of a residential project consisted in multiple superstructures on a common two levels infrastructure. The total overground height of the structure is 44 meters and has a length of 34.8m and a width of 15.5m. The SeismoStruct Pushover analyses file is provided. The model was created by DI&A, Bucharest.
4-STOREY-BUILDING-3D-MODEL
Official release of 09/01/2020 (SEISMOSTRUCT)4-STOREY-BUILDING-3D-MODEL
This is a model of a 4-storey building, which incorporates diaphragm constraints and torsional (accidental eccentricity of mass centers at each floor) effects and includes only those elements which participate in the lateral force resisting system. This is intended to exhibit one manner in which these effects may be captured with a minimum of elements and nodes. The assumptions inherent in rigid diaphragm modeling would necessarily need to be acceptable to the engineer. The mass elements include horizontal translational components and rotary inertia about the vertical axis to model the accidental eccentricity. SeismoStruct project files for Eigenvalue and Response Spectrum analysis are provided. The models were created by Dr. Timothy E. Huff of the Tennessee Tech University.

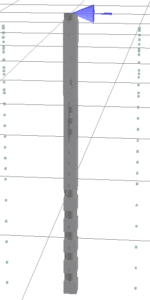

MODEL WITH SSI_PY RESPONSE CURVE
Official release of 14/01/2019 (SEISMOSTRUCT)

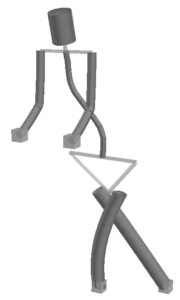

MODELS OF A HUMAN BODY WITH SCOLIOSIS
Official release of 14/01/2019 (SEISMOSTRUCT)MODELS OF A HUMAN BODY WITH SCOLIOSIS
These are two SeismoStruct models of a human body with scoliosis. The models display the correct and wrong implementation of typical exercises employed to reduce the scoliosis cob angle. The SeismoStruct project files for static time-history analysis are provided.
